CSV-2000

CSV-2000 The first and only all-in-one digital vision tester with STANDARDIZED contrast sensitivity, glare and visual acuity.

Today’s eye care

Why the CSV-2000

Today’s eye care clinical environment requires efficient and standardized testing for a range of vision tests in one instrument. The CSV-2000 is the first and only device that provides the recognized standard for contrast sensitivity testing along with the full range of visual acuity, color, astigmatism, fixation, and other standard vision tests. By incorporating the AcQviz standardization technology with the VectorVision contrast sensitivity test, the CSV-2000 brings next generation technology to your examination room.

Introducing the CSV-2000

Highlights and benefits

CSV-2000 Features

CSV-2000 The first and only all-in-one digital vision testing device that offers the full range of vision tests, along with STANDARDIZED contrast sensitivity, glare and visual acuity.

AcQviz Auto-Calibration

Includes the patented AcQviz technology that automatically measures monitor luminance and adjusts testing to the recognized FDA vision testing luminance standard of 85 cd/m².

Standardized to the testing light level recommended by the FDA and ANSI
Easy-to-use remote control allows rapid integration into patient flow

Full Range of Vision Tests

Includes the full range of vision tests, including acuity, astigmatism, convergence, color, depth, etc. and the proprietary VectorVision contrast sensitivity and glare tests.

Standardized to the testing light level recommended by the FDA and ANSI
Easy-to-use remote control allows rapid integration into patient flow

Scientifically Validated Contrast Sensitivity Testing

Uses the same contrast and spatial frequency range that is validated by more than 100 scientific papers and provides the only published population age-norms.

Standardized to the testing light level recommended by the FDA and ANSI
Easy-to-use remote control allows rapid integration into patient flow

Rapid Testing

Remote control provides the ability to easily switch between tests. All tests are designed specifically for a computerized format, thus making testing fast and easy.

Standardized to the testing light level recommended by the FDA and ANSI
Easy-to-use remote control allows rapid integration into patient flow

AcQviz Standardization

AcQviz offers patented technology for automatically calibrating the monitor light source in the CSV-2000. The auto-calibration is accomplished through proprietary technology from Guardion Health Sciences (Parent Company of VectorVision). AcQviz continuously measures the monitor light level and adjusts the level to 85 cd/m². This light level is recommended for vision testing by the United States National Academy of Science Working Group on Vision Standards, the United States Food and Drug Administration and the American National Standards Institute. The AcQviz device is housed in the upper left-hand corner of the screen and communicates via specialized software and miniaturized hardware with the luminance control of the monitor.

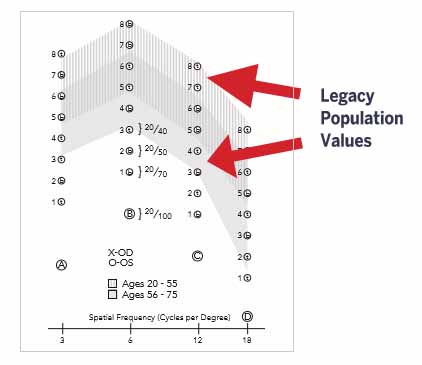

Legacy Standardized Contrast Sensitivity

The CSV-2000 incorporates the same spatial frequencies and contrast levels as the CSV-1000, presented in the same format for testing. The CSV-1000 testing protocol has been the world-wide standard for contrast sensitivity evaluation for more than 20 years, has been used in more than 50 FDA clinical trials and has its accuracy and sensitivity validated in more than 75 research publications or presentations. Use of the standardized CSV-1000 legacy contrast sensitivity protocol allows clinicians to compare their patients scores to population norms and the to the published data available from the many research studies.

Practice Efficiency

Patented technology, advanced engineering and integration of the contrast sensitivity into a full vision testing suite makes the CSV-2000 a breakthrough in office efficiency.

Easy to Switch Between All Vision Tests in One Standardized Instrument
Rapid Standardized Testing of Contrast Sensitivity and Glare at any distance
Accurate results to compare to previous studies and normative values
Wall or floor stand mounted. Can be viewed straight on or through mirror.
Published research provides validation for surgical and other treatment outcomes.

Why VectorVision?®

As treatments evolve, so must the testing technology

View More Videos

Over the last 20 years, VectorVision testing equipment has become the worldwide benchmark for standardized contrast sensitivity, glare and ETDRS acuity testing.
